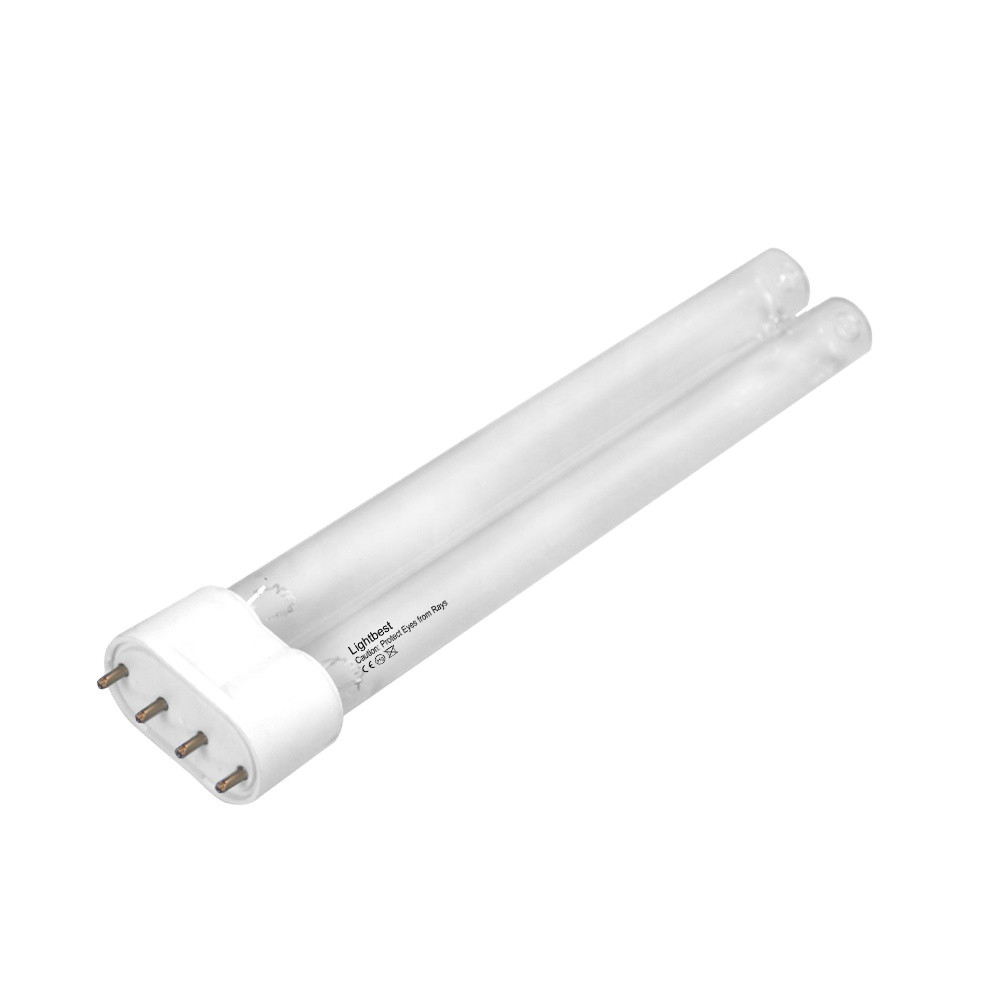

Name: H Shape 36W 0.390A UV Light Tubes 411mm Length G23 UVC Germicidal Tube
Brand: UV, Yoway
SKU: ZW36D17Y-H411
Price: 6 USD
Availability: InStock
Rating: 4.8 (107 reviews)

Detail Information

Type:	254nm Uvc Lamp	Name:	H Shape Bulb
Fuction:	Disinfection , Kill Viruses	Connection Spacing:	11±0.1mm
Length:	411mm	Lamp Current:	0.390A
Quartz 13000 Hours:	Amalgam	Model:	ZW36D17Y-H411
Ballast:	YWGP-36W	254nm UV Output:	24W
Highlight:	H Shape 36W UV Light Tubes , G23 UVC Germicidal Tube , 36W UV Light Tubes 411mm

Product Description

H Shape 36W Lamp Uvc Light Uv Lamp H Shape 411mm G23 UV Germicidal Lamp Uvc Light

			1
			KITCHEN FUME PURIFICATION

			2
			DEODORIZATION AND PURIFICATION TREATMENT

			3
			REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

			Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)

			ITEM NO./规格型号
			PRODUCT PICTURE/产品图片
			Dia/管径(mm)
			MOQ(MOQ是否需要更改)
			PORT
			Price/价格($/pcs)
			Ballast Price/ 镇流器价格($/set)

			单 端 H 管/Single ended H Pipe
			5W
			ZW5D12Y(W)-H85

			∅12
			100
			NINGBO

			7W
			ZW7D12Y(W)-H115

			∅12
			100
			NINGBO

			9W
			ZW9D12Y(W)-H145

			∅12
			100
			NINGBO

			11W
			ZW11D12Y(W)-H215

			∅12
			100
			NINGBO

			13W
			ZW13D12Y(W)-H164

			∅12
			100
			NINGBO

			18W
			ZW18D17Y(W)-H217

			∅17
			100
			NINGBO

			24W
			ZW24D17Y(W)-H317

			∅17
			100
			NINGBO

			36W
			ZW36D17Y(W)-H411(386)
			60w
			∅17
			100
			NINGBO

			55W
			ZW55D17Y(W)-H533
			95w
			∅17
			100
			NINGBO

			Product Display

			Model
			ZW36D17Y-H411

			Tube
			17mm

			Length
			411mm

			Power
			36W

			Current
			0.390A

			Voitage at
			92V

			UV output at
254nm

			150μw/ cm2

			1.1W

			Light Source

			Quartz Tube

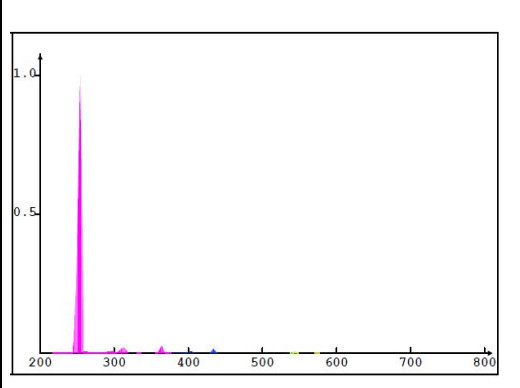

			wavelength(nm)

			253.7

			Rated Power

			36W

			Diameter

			17mm

			Base face length

			411

			Head material

			ceramics

			Single head or double head

			Sigle-ended

The Eight Core Technologies1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.
Product Advantage:
Long life
The average life is 8,000-10,000 hours
High ultraviolet output
We adopt the high purity quartz tubes and advanced manufacturing technique to make the Youwei’s lamps with very high ultraviolet output.
Small light decay
The UV light decay is only 10-15% during the life time.
Reliability and stability
Advanced manufacturing technology and supervising quality guaranteed that our lamps are provided with dependability, stability, consistency.
Good cost performance
l All data are from factory internal test, only for reference use

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	UV, Yoway
Certification:	CE,ROSH
Model Number:	ZW36D17Y-H411

Minimum Order Quantity:	10 pcs
Price:	$6-$45/SET
Packaging Details:	paper box packing
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000pcs per month
