2 Years Warranty 206w UV Electronic Ballast UVC Lamp Ballasts
206w electric ballasts for two pcs 42w-75w uvc lamps ballast
PL8 series 40W-200W
■Features
• Applicable to the field less than three switch on-off cycles,
especially applicable to instant start the lamp.
• with function of on-off value (dry contacts)
• 5VDC output function, 5VDC output: UV lamp operating
normally； 0VDC output: UV lamp failed or powered off. It
may drive LED directly.
■Load Lamp
• PL8-425-2/75U:
2*GPH1630T5,GPH1554T5,GPH1148T5,GPH843T5,
TUV64T5,G64T5,G36T5
Wiring diagram: A
4*GPH843T5,GPH793T5,GPH550T5,GPH436T5,G36T5,
TUV36T5,TUVPL-L36W, TUV36W
Wiring diagram: B
• PL8-800-2/155:
2*GPH893T5HO,GPH846T5HO,GHO36T5,
TUV95WHOPL-L,TUV75WHO,TUV60WHO,TUV55WHO,
TUV36T5HO
2*GPH1554T5HO,GHO64T5,TUV64T5HO,TUVPL-L95WHO,
TL100W Wiring diagram: A
• PL8-1200-2/105U:
2*GPHVA843T5,GPHVA357T5
Wiring diagram: A

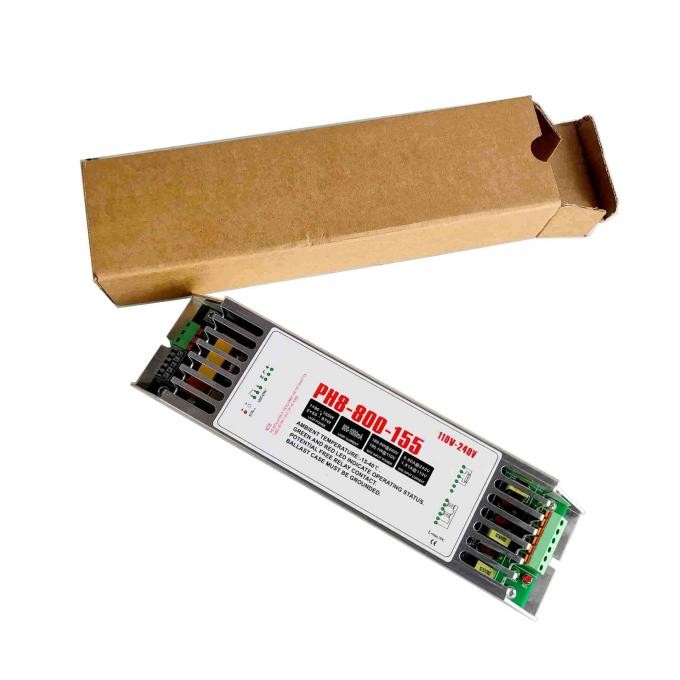

• PL8-800-155 & PL8-800-155 (480V ):
GPH1554T5HO,GHO64T5,TUV64T5HO,TUVPL-L95WHO,
TL100W
Wiring diagram: C
• PL8-1200-190:
GPHA843T5L,GPHA1000T5,GPHA1554T5
Wiring diagram: C
• PL8-2100-200:
GPHHA843T6,GPHHA1000T
Wiring diagram: C
■Packaging information
• Size of Ballast: 250*65*40mm
Mounting Distance:240mm
• Size of Package: 460*270*190mm
Quantity:18PCS
Note for ordering
・ Input power cord should be changed into different national
standardized power cord. Such as GB, BIS, CE, SAA, etc.
Different power cord has different ordering number (must
check it carefully before ordering). Output line can also be
changed into 4*0.5 mm2,4*18#,5*18#, etc. Output line can
add waterproof connector, dust cover, hole plugs, detailed
information see the accessories list.
The power supply must be cut off before installing and
replacing the ballast.The connecting line between ballast
and lamp tube shall not exceed 5m
|
Product name
|
Electronic ballast for 90-155w uv lamps
|
|
Input Wattage
|
206w
|
|
Voltage
|
240 v 110v
|
|
Lamp quantity
|
2 pcs 42w-75w
|
|
Color
|
White
|
|
Application
|
Germicidal ultraviolet Lamps
|
|
Size
|
25*6.5*4 cm
|
|
Brand
|
UV or OEM
|
|
Warranty
|
2 years
|
Ballasts can be complicated. Nobody replaces ballasts regularly. Inevitably, ballasts are needed when you go to change out the UV bulb at your machine's recommended intervals when you realize that the new bulb is not lighting up or is flickering. Instead of an easy UV bulb switch, your maintenance just became a potentially complicated electronic ballast search and installation.
Finding the right ballast is the first hurdle but not the only one. Even after you take receipt of the ballast, you have to figure
out how to wire them. Depending on the bulb type and the number of bulbs in your system, the wiring can change completely. It is not incredibly complicated, but more troublesome than it is worth for the majority of UV air or water purification system operators.
we want to take the guesswork out of ballast replacement. With this ballast, you are guaranteed to receive the right
ballast with the right wiring diagram. Any questions, and we'll be here every step along the way to help you out.
|
|
Electronic ballast
|
|
|
Iron
|
|
|
206w
|
|
|
220
|
|
|
all
|
|
|

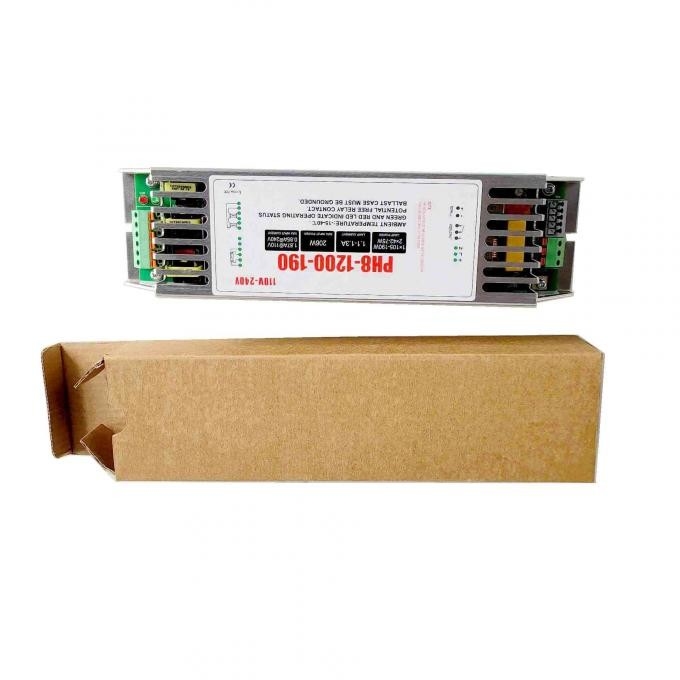

PH8-1200-190
|
|
|
Electric
|

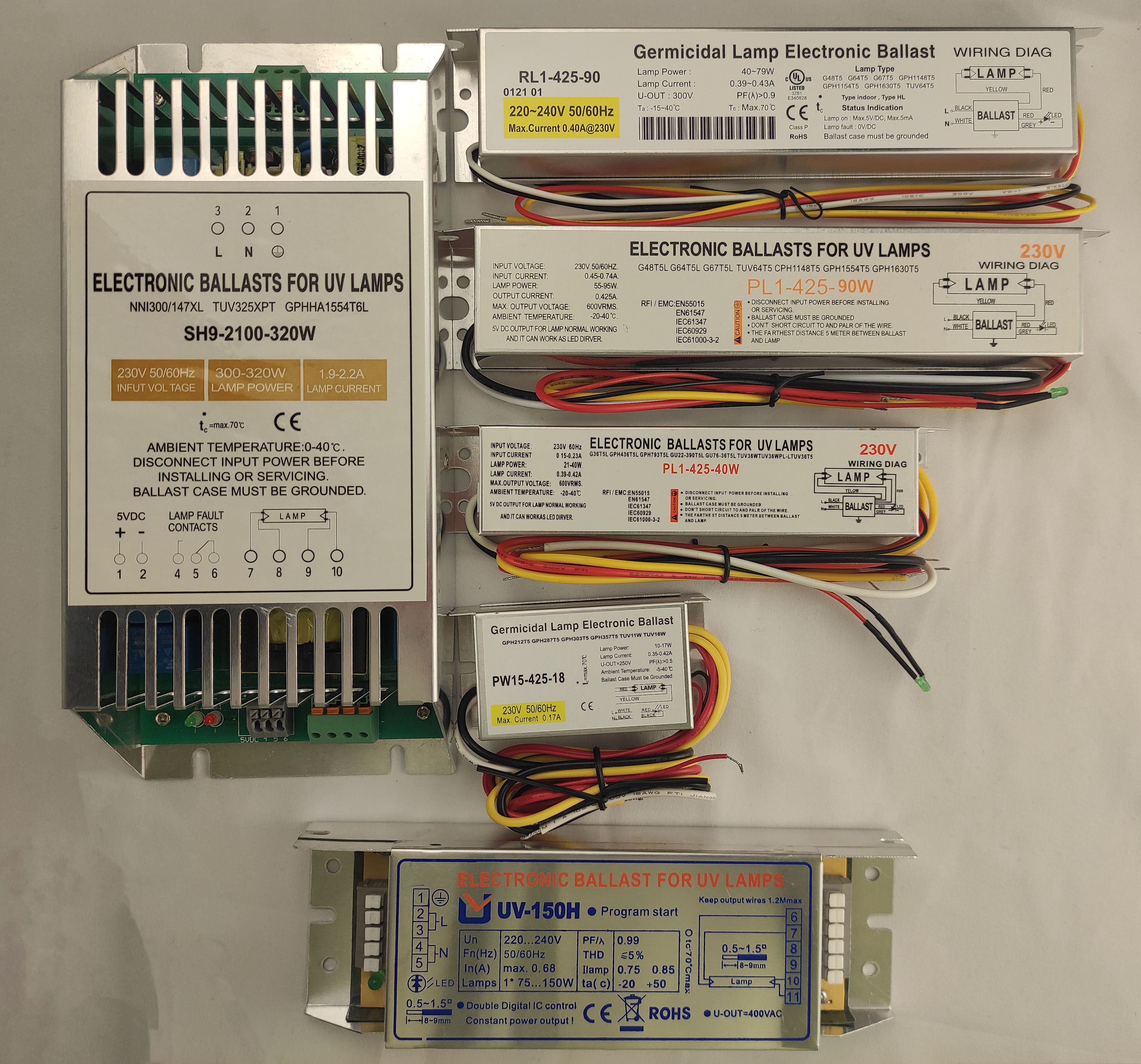

We design and manufacture UVC ballasts for a wide range of germicidal ultraviolet lamps used in a variety of water, air, and surface purification devices. Our ballasts are essential to increasing the safety and working lifetime of UVC lamps. No matter the size, power, or lamp configuration required for your application, Our team of engineers will design and manufacture a ballast with the desired certifications to fit perfectly into your system. Our collaborative approach helps us serve as an extension of your engineering and design team.
We can make customized products !!!
Specifications:
1.high frequency working status,fast start without flickering;
2.Low temperature rising, no noise, long life span,and fire resistant;
3.Could shut off automatically when the tube is time over,or woring in abnormal status,and it will restart change the tube;
4.Power:18W-40W;
5.Material:copper wire or aluminum wire;
6.Small size,light weight;
7.Low power consumption
|
Output parameters |
PW11-425-40D24 |
| Input voltage range |
Max 48W |
| Output current |
0.35A~0.42A |
| Voltage |
1.6~26.4V |
| Start time |
≤ 8mS |
| 24V |
| Use environment |
ta) - 20℃…+ 70℃ |
Installation case:
1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.
Advantages:
Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance
1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement
|
Light Source
|
Quartz Tube
|
|
wavelength(nm)
|
253.7
|
|
Rated Power
|
200W
|
|
Diameter
|
15mm
|
|
Base face length
|
1100
|
|
Head material
|
ceramics
|
|
Single head or double head
|
H shape
|
The Eight Core Technologies
1.Core filament electronic power processing technology.
2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
5.Unique patented rapid leak detection technology
6.Unique wick anti-vibration patented technology .
7.The most advanced automated processing equiment in China.
8.Cost advantage and perfect pre-sales and after-sales service.
Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.
Q: What's your advantage compared with other suppliers?
A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.
Q:What's my consideration when I choose one model of uv lamps?
A: Watts,Length,Volt and current about the electric ballast.
Q:What are the types of use of different UVC lamps?
A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.
Q:What is the difference between normal and amalgam lamps?
A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .
Q:How does the generated OZONE affect the health of people?
A:Excessive ozone can cause human organ failure.
Q:Can you accept the OEM or ODM?
A: Yes.
